ZOYI raqamli multimetrlar – AC/DC, True RMS, chastota va diagnostika o‘lchovlari

• 🔌 AC/DC tok: 600 A gacha

• ⚡ AC/DC kuchlanish

• 🔁 Qarshilik

• 📈 Chastota

• 📐 True RMS

• 📡 NCV

• 📲 Bluetooth – smartfon bilan ulanish

• 📊 Real vaqt ma’lumot uzatish

• 🔍 Diod

• 🔔 Uzluksizlik

🟦 ZOYI ZT98 (batareyasiz)

🔹 O‘lchovlar

• ⚡ AC kuchlanish: 0–750 V
• ⚡ DC kuchlanish: 0–1000 V
• 🔌 AC/DC tok: 0–200 mA
• 🔁 Qarshilik: 0–20 MΩ

🔹 Funksiyalar

• 🔍 Diod testi
• 🔔 Zanjir uzluksizligi (signalni yoqish/o‘chirish)
• 💡 Displey yoritilishi
• 🧠 Avtomatik o‘chish
• 📟 1999 counts
• 🔄 Avtomatik diapazon tanlash

❌ Chastota | ❌ Sig‘im | ❌ Temperatura | ❌ True RMS

🟦 ZOYI ZT100 (batareyasiz)

🔹 O‘lchovlar

• ⚡ DC kuchlanish: 0–1000 V
• ⚡ AC kuchlanish: 0–750 V
• 🔌 AC/DC tok: 0–400 mA
• 🔁 Qarshilik: 0–40 MΩ
• 🔋 Sig‘im: 0–200 µF
• 📈 Chastota: 0–9.999 MHz
• 📊 Duty cycle: 1–99 %

🔹 Funksiyalar

• 🔍 Diod testi
• 🔔 Uzluksizlik testi
• 💡 Yoritilgan ekran
• 🧠 Auto Power Off
• 🔄 Avtoranging
• 📟 4000 counts

❌ Temperatura | ❌ True RMS

🟦 ZOYI ZT101 (batareyasiz)

🔹 O‘lchovlar

• ⚡ DC kuchlanish: 1000 V gacha
• ⚡ AC kuchlanish: 750 V gacha
• 🔌 DC/AC tok: 10 A gacha
• 🔁 Qarshilik: 60 MΩ gacha
• 🔋 Sig‘im: 10000 µF gacha
• 📈 Chastota: 10 MHz gacha
• 📊 Duty cycle

🔹 Funksiyalar

• 📐 True RMS
• 🔍 Diod testi
• 🔔 Uzluksizlik
• 💡 Displey yoritilishi
• 🧠 Avtomatik o‘chish
• 🔋 Past kuchlanish indikatori
• 📟 6000 counts
• 💾 Data Hold

❌ Temperatura

🟨 ZOYI ZT102 (batareyasiz)

🔹 O‘lchovlar

• ⚡ DC kuchlanish: 0–1000 V
• ⚡ AC kuchlanish: 0–750 V
• 🔌 DC/AC tok: 0–10 A
• 🔁 Qarshilik: 0–60 MΩ
• 🔋 Sig‘im: 0–9.99 mF
• 📈 Chastota: 0–9.999 MHz
• 📊 Duty cycle: 1–99 %

🔹 Funksiyalar

• 🌡 Temperatura: –20 ~ +1000 °C
• 📐 True RMS
• 🔍 Diod testi
• 🔔 Uzluksizlik
• 💡 Yoritilgan ekran
• 🧠 Auto Power Off
• 📟 6000 counts

🟥 ZOYI ZT102A (batareyasiz)

🔹 O‘lchovlar

• ⚡ DC/AC kuchlanish: 1000 V / 750 V
• 🔌 DC/AC tok: 10 A gacha
• 🔁 Qarshilik: 60 MΩ gacha
• 🔋 Sig‘im: 9.99 mF gacha
• 📈 Chastota: 9.999 MHz gacha
• 📊 Duty cycle

🔹 Funksiyalar

• 🌡 Temperatura: –20 ~ +1000 °C (K-tip datchik orqali)
• 📐 True RMS
• 🔍 Diod testi
• 🔔 Uzluksizlik
• 💡 Displey yoritilishi
• 🧠 Avtomatik o‘chish
• 📟 6000 counts

🟩 ZOYI ZT109 (batareyasiz)

🔹 O‘lchovlar

• ⚡ AC/DC kuchlanish
• 🔌 AC/DC tok
• 🔁 Qarshilik
• 🔋 Sig‘im
• 📈 Chastota
• 🔳 Kvadrat impuls chiqishi

🔹 Funksiyalar

• 📐 True RMS
• 🔍 Diod
• 🔔 Uzluksizlik
• 💡 Yoritish
• 🧠 Auto Power Off
• 📟 9999 counts

❌ Temperatura

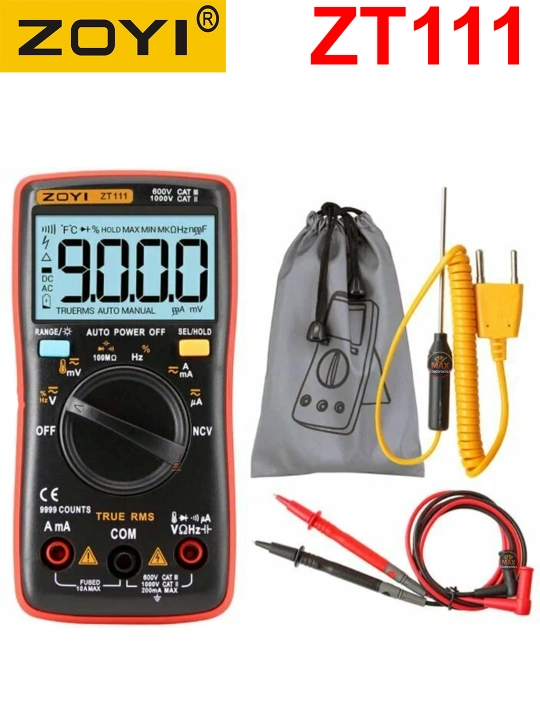

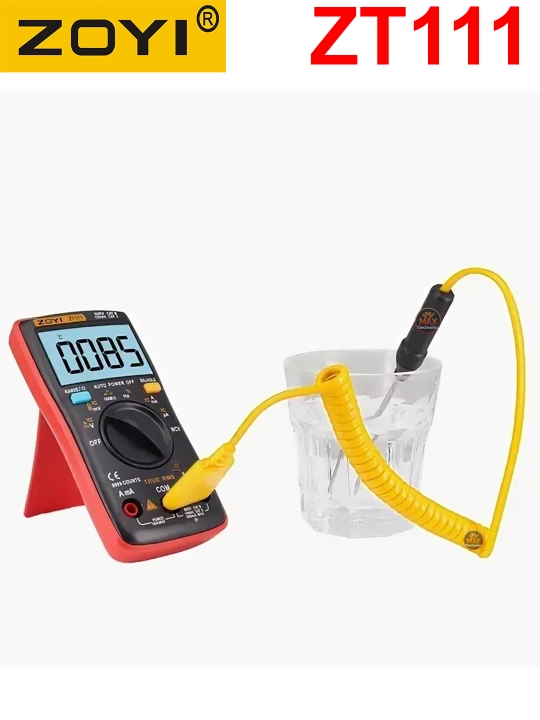

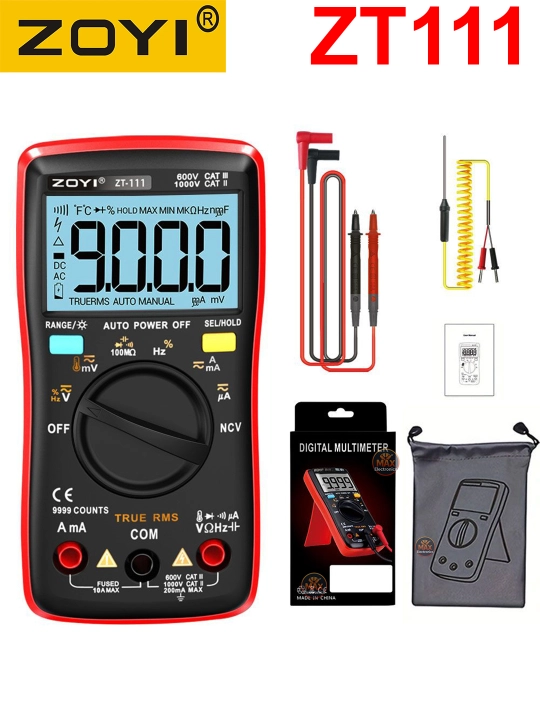

🟥 ZOYI ZT111 (batareyasiz)

🔹 O‘lchovlar

• ⚡ DC 1000 V / AC 750 V
• 🔌 DC/AC tok: 10 A gacha
• 🔁 Qarshilik: 10 MΩ gacha
• 🔋 Sig‘im: 10000 µF gacha
• 📈 Chastota: 10 MHz gacha

🔹 Funksiyalar

• 🌡 Temperatura
• 📡 NCV – kontaktlarsiz kuchlanish aniqlash
• 📐 True RMS
• 🔍 Diod
• 🔔 Uzluksizlik
• 💡 Yoritilgan ekran
• 🧠 Avtomatik o‘chish
• 📟 9999 counts

⬛ ZOYI VC921 (batareyasiz)

🔹 O‘lchovlar

• ⚡ AC/DC kuchlanish
• 🔁 Qarshilik
• 🔋 Sig‘im
• 📈 Chastota

🔹 Funksiyalar

• 📐 True RMS
• 🔍 Diod
• 🔔 Uzluksizlik
• 💾 Data Hold
• 🧠 Auto Power Off

🟠 ZOYI ZT-QB1 (batareyasiz, tok qisqichli)

🔹 Tok qisqichi orqali

• 🔌 AC/DC tok: 600 A gacha
• ⚡ AC/DC kuchlanish
• 🔁 Qarshilik
• 📈 Chastota

🔹 Funksiyalar

• 📐 True RMS
• 📡 NCV
• 🔍 Diod
• 🔔 Uzluksizlik

🟠 ZOYI ZT-5QB Bluetooth (batareyasiz)

🔹 Tok qisqichi orqali

• 🔌 AC/DC tok: 600 A gacha
• ⚡ AC/DC kuchlanish
• 🔁 Qarshilik
• 📈 Chastota

🔹 Funksiyalar

• 📐 True RMS
• 📡 NCV
• 📲 Bluetooth – smartfon bilan ulanish
• 📊 Real vaqt ma’lumot uzatish
• 🔍 Diod
• 🔔 Uzluksizlik

❌ Temperatura

🔴 ZOYI ZT-QB9 (batareyasiz, professional)

🔹 Tok qisqichi orqali

• 🔌 AC/DC tok: 600 A gacha
• ⚡ AC/DC kuchlanish
• 🔁 Qarshilik
• 📈 Chastota

🔹 Funksiyalar

• 🌡 Temperatura: –30 ~ +1000 °C
• 🚀 Inrush / Peak Hold
• 📐 True RMS
• 📡 NCV
• 🔍 Diod
• 🔔 Uzluksizlik
