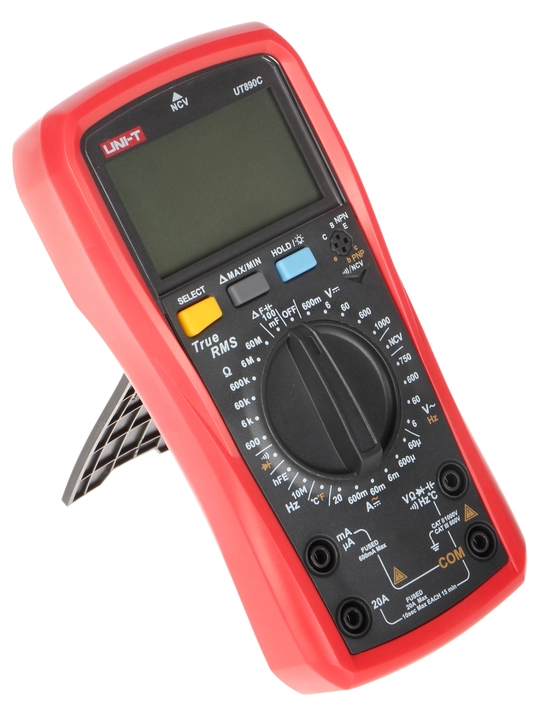

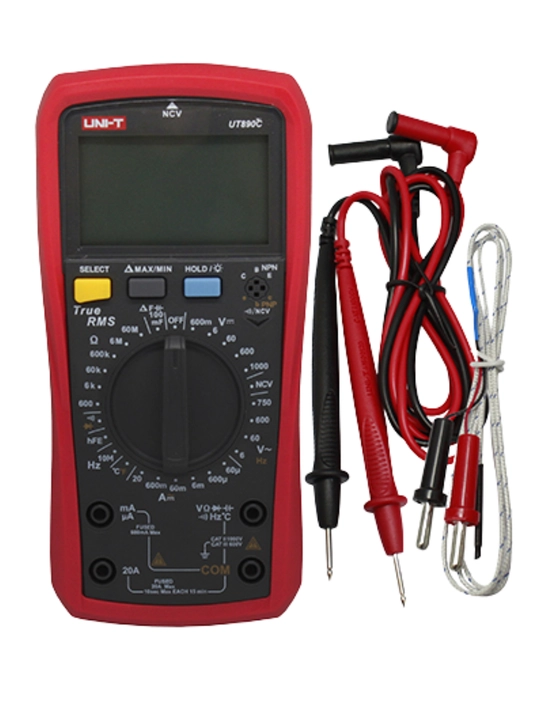

Raqamli multimetr UNI-T UT 890С+

Asosiy xususiyatlar va texnik spetsifikatsiya

O‘lchov turi                                Diapazonlar                         Aniqlik

DC voltaj                                        600 mV / 6 V / 60 V / 600 V / 1000 V      ±(0.5 % + 2)

AC voltaj                                        6 V / 60 V / 600 V / 750 V               ±(0.8 % + 3)

Frekans (ACV)                                   10 Hz – 10 kHz                        ±(0.1 % + 5)

DC tok                                           60 µA … 20 A                         ±(0.8 % + 8)

AC tok                                           60 µA … 20 A                         ±(1 % + 12)

R=kaz håller                                     600 Ω … 60 MΩ                       ±(0.8 % + 3)

Kapasi                                           6 nF … 100 mF                        ±(3 % + 10)

Frekans umumiy                                 9.999 Hz … 9.999 MHz                 ±(1.0 % + 5)

Temperatura                                     −40 °C … +1000 °C / −40 °F …+1832 °F    ±(1.5 % + 5)

Qaysi vaziyatlarda foydali?

• Uy va yengil sanoat sharoitida elektr tarmoqlarini diagnostika qilish
• Elektron komponent va platalar test qilish
• Temperatura, frekans, tok, kuchlanish va boshqa ko‘plab parametrlarni o‘lchash
• zaryad, shovqin, naqshli signalni NCV orqali aniqlash
• Mavjud prob bilan tezkor signal-test va komponeni tekshirish
