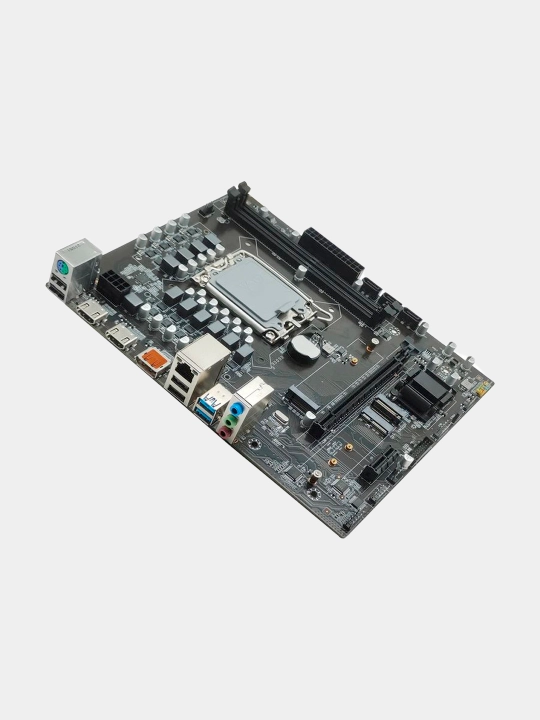

Ona plata AMI H610 OEM / LGA 1700 / DDR4, Intel Core i3, i5, i7, 12-avlod protsessorlar

• Name&Model : IH610 OEM (LGA1700) Supports 12th CPU ( LGA1700 )

• Chipset : Intel H610@ Express Chipset

• LAN: with 10/100/1000Mbps LAN onboard

• Form factor：Micro-ATX architecture(17x21cm)

• Memory: 2x288-pin DDR4 SDRAM slots Memory up to 64GB Supports dual channel DDR4 2133/2400/2666/2800/2933/3200MHZ

• Audio : With 6-channal HD Audio Codec onboard provides front audio interface provides front stereo mic interface

• Expansion slots : 1 x PCI Express x16 slot 1 x PCI Express x1 slot 1 x NVME-M.2 connector 1 x M_SATA M.2 connector 1 x WIFI connector

Hurmatli haridorlar ayni paytda xozirda H610 OEM sotuvda

Nomi va modeli: AX-MBAIH610 (LGA1700)

CPU qo'llab-quvvatlashi: 12-chi protsessorni qo'llab-quvvatlaydi (LGA1700)

Chipset: Intel H610@ Express chipset

Xotira: 2x288-pinli DDR4 SDRAM uyalari

Xotira 64 GB gacha

Ikki kanalli DDR4 ni qo'llab-quvvatlaydi

2133/2400/2666/2800/2933/3200 MGts

LAN: bortda 10/100/1000Mbps LAN bilan

Ovoz: bortda 6 kanalli HD audio kodek bilan

oldingi audio interfeysini ta'minlaydi

oldingi stereo mikrofon interfeysini ta'minlaydi

Kengaytirish uyasi: 1 x PCI Express x16 uyasi

1 x PCI Express x1 uyasi

1 x NVME-M.2 ulagichi

1 x M_SATA M.2 ulagichi

1 x WIFI ulagichi

I/U ulagichlari: 1 x PS2 porti

4 x USB, USB2.0/1.1 bilan mos keladi

2 x USB, USB3.0 bilan mos keladi

1 x DP porti

2 x HDMI porti

1 x RJ45 porti.

1 x 3-in-1 audio port (liniya kirish/chiqish/MIC IN)

.

Shakl faktori: Micro-ATX arxitekturasi (17x21 sm)

Name&Model : AX-MBAIH610 (LGA1700)

CPU support : Supports 12th CPU ( LGA1700 )

Chipset : Intel H610@ Express Chipset

Memory: 2x288-pin DDR4 SDRAM slots

        Memory up to 64GB

        Supports dual channel DDR4

        2133/2400/2666/2800/2933/3200MHZ

LAN: with 10/100/1000Mbps LAN onboard

​

Audio : With 6-channal HD Audio Codec onboard

      provides front audio interface

      provides front stereo mic interface

​

Expansion slots : 1 x PCI Express x16 slot

               1 x PCI Express x1 slot

               1 x NVME-M.2 connector

               1 x M_SATA M.2 connector

               1 x WIFI connector

I/O connectors：1 x PS2 port

              4 x USB,compatible with USB2.0/ 1.1

              2 x USB, compatible with USB3.0

              1 x DP port

              2 x HDMI port

              1 x RJ45port.

              1 x 3-in-1 Audio port(line In/Line Out/MIC IN)

​

Form factor：Micro-ATX architecture(17x21cm)
