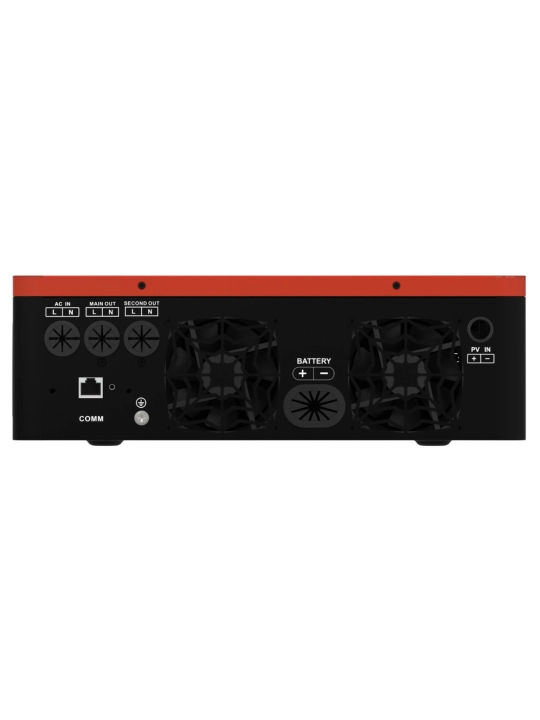

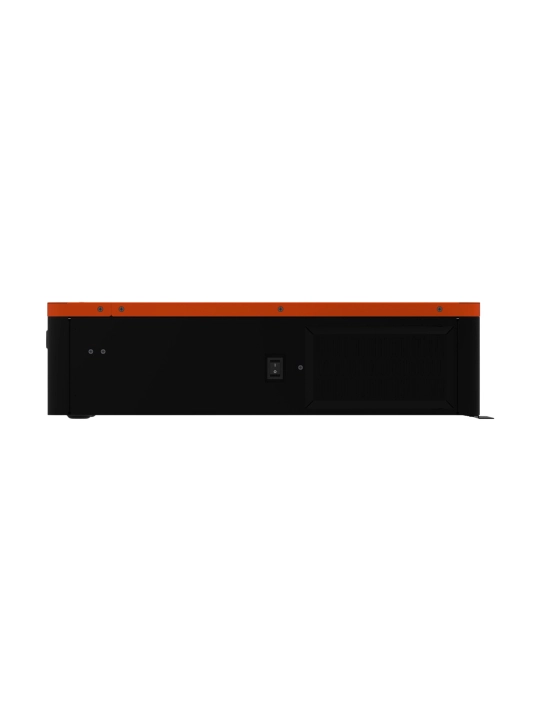

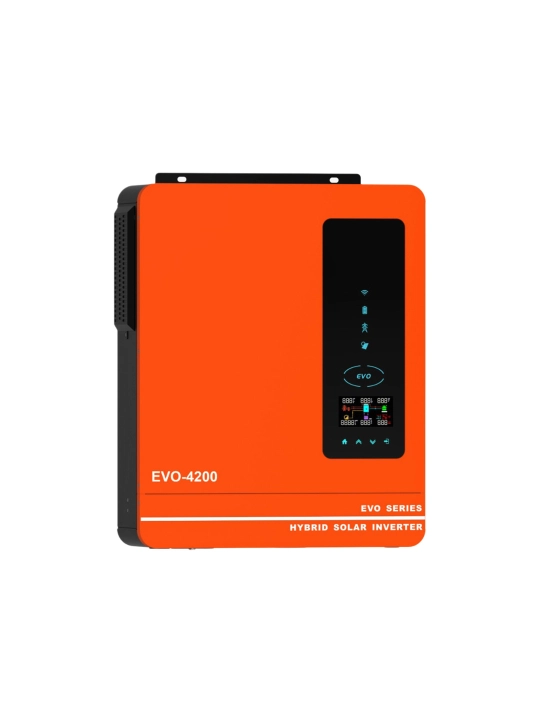

AN-SCI-EVO-4200 4.2 kW gibrid quyosh inverteri (24V, MPPT)

INVERTER CHARGER

MODEL NAME: AN-SCI-EVO-4200

MODEL NUMBER: AN-SCI-EVO-4200

Color: Orange and Black

Operating Temperature Range: -10 ~ 50°C

PV INPUT:

Nominal operating voltage: 240Vdc

Vmax PV: 500Vdc

PV input voltage range: 60–450Vdc

Imax PV: 18A

Full load MPPT range: 240–450Vdc

Maximum PV Input Power: 6200W

Maximum Solar Charging Current: 120A

GRID / AC OUTPUT:

Nominal Output Voltage: 220/230/240Vac

Feed-in Grid Voltage Range: 195–253Vac

Feed-in Grid Frequency Range: 50±1Hz

Nominal Output Current: 18.2A

Power Factor Range: >0.99

Maximum Conversion Efficiency (DC/AC): 97%

Nominal Operating Frequency: 50/60Hz

TWO LOAD OUTPUT POWER:

Full Load: 4200W

Maximum Main Load: 4200W

Second Load Range: 840W–2940W

Main Load Cut Off Voltage: 22Vdc

Main Load Return Voltage: 26Vdc

AC INPUT:

Nominal operating voltage: 230Vac

Maximum input current: 24.7A

Nominal operating frequency: 50/60Hz

Surge power: 8400VA

Maximum AC Charging Current: 100A

BATTERY:

Battery voltage: 24Vdc

Maximum battery current: 175A
