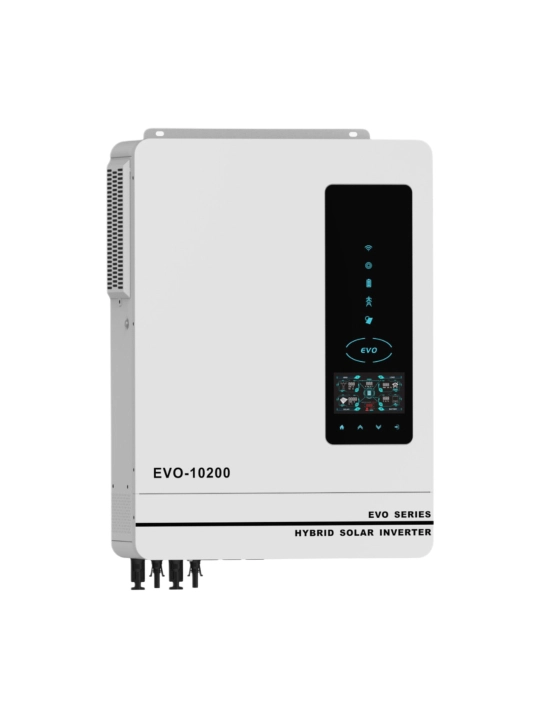

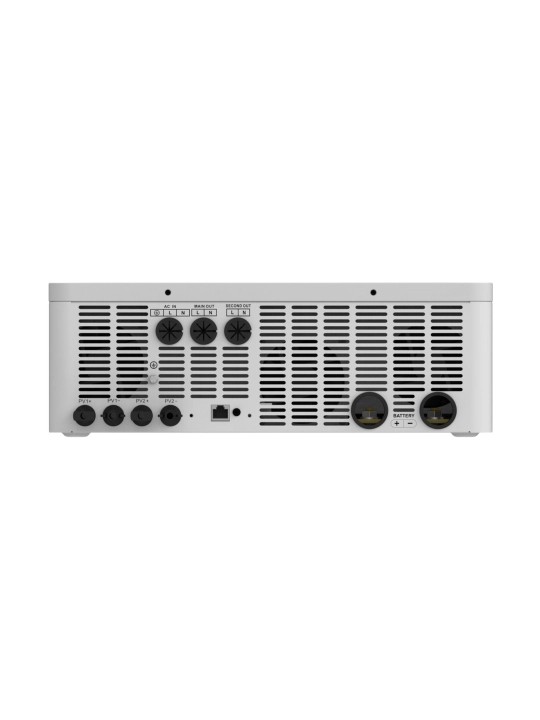

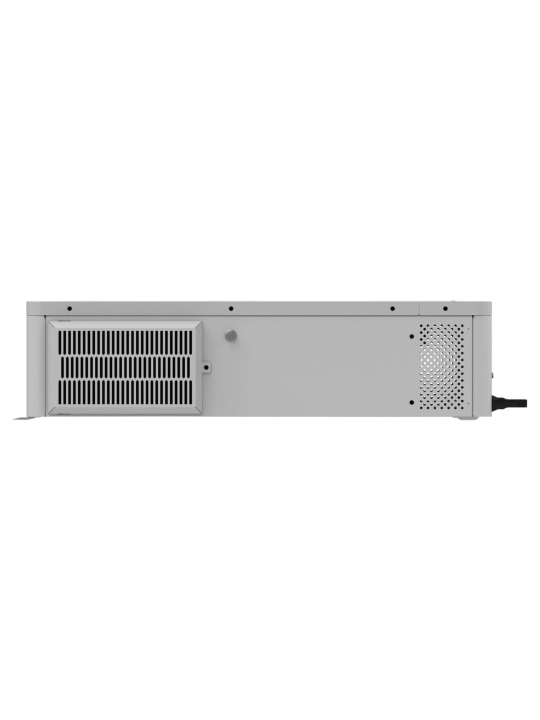

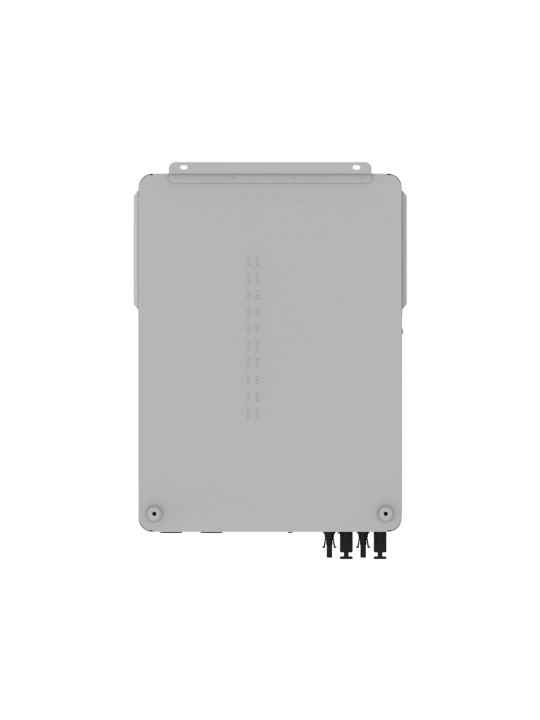

10.2 kW gibrid quyosh inverteri AN-SCI-EVO-10200 48V, MPPT

INVERTER ZARYADLOVCHI

MODEL NOMI: AN-SCI-EVO-10200

MODEL RAQAMI: AN-SCI-EVO-10200

Rang: Yashil va Qora

Ish harorati diapazoni: -10~50°C

PV KIRISH:

Nominal ish kuchlanishi: 360Vdc

Vmax PV: 500Vdc

PV kirish kuchlanishi diapazoni: 90-450Vdc

Imax PV: 22A

To'liq yuklangan MPPT diapazoni: 360~450Vdc

Maksimal PV kirish quvvati: 12000W

Maksimal quyosh zaryadlash oqimi: 160A

TARMOQ/AC CHIQISH:

Nominal chiqish kuchlanishi: 220/230/240Vac

Ulanish tarmog'i kuchlanishi diapazoni: 195~253Vac

Ulanish tarmog'i chastotasi diapazoni: 50±1Hz

Nominal chiqish oqimi: 45.0A

Quvvat koeffitsienti diapazoni: >0.99

Maksimal konversiya samaradorligi (DC/AC): 97%

Nominal ish chastotasi: 50/60Hz

IKKI YUKLASH CHIQISH QUVVATI:

To'liq yuk: 10200W

Maksimal asosiy yuk: 10200W

Ikkinchi yuk diapazoni: 2040W~7140W

Asosiy yukni o'chirish kuchlanishi: 44Vdc

Asosiy yukni qaytarish kuchlanishi: 52Vdc

AC KIRISH:

Nominal ish kuchlanishi: 230Vac

Maksimal kirish oqimi: 60A

Nominal ish chastotasi: 50/60Hz

Kuchlanish quvvati: 20400VA

Maksimal AC zaryadlash oqimi: 140A

BATAREYA:

Batareya kuchlanishi: 48Vdc

Maksimal batareya zaryadlash Oqim: 160A

Batareyaning maksimal zaryadsizlanish oqimi: 160A
